optical network unit HUAWEI ONT 1GE GPON chipset ZTE good compatible
OFSG511 is GPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators.This box is based on the stable and mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch. It is highly reliable and easy to maintain, with guaranteed QoS for different service.
Basic Characteristics
| Tech parameters | description |
| Up-link interface | 1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| ndicator LED | 4 pcs |
| DC supply interface | input＋12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5～+55℃ |
| Humidity | 5～95%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 125*103*28mm(mainframe) |
| Weight | 125*103*28mm(mainframe) |
Features
⚫ Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
⚫ Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
⚫ Support China Telecom GPON CTC3.1 standard and expand OAM
⚫ Support DBA reporting mechanism request
⚫ Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
⚫ Support the remote upgrade and download
⚫ Support to save configured parameters if power down
⚫ Support to configure the work mode at the user port
⚫ Support MDI-MDIX automatic-detection at the user port.
⚫ Support access authentication based on serial number
⚫ Support access authentication based on MAC address
⚫ Support 802.1Q VLAN
⚫ Support rich QinQ VLAN functions and IGMP Snooping
⚫ Support traffic rule to modify the related priority.
⚫ Support to restore the factory settings
⚫ Support the remote reset and reboot
⚫ Support dying gasp outage alarm
⚫ Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

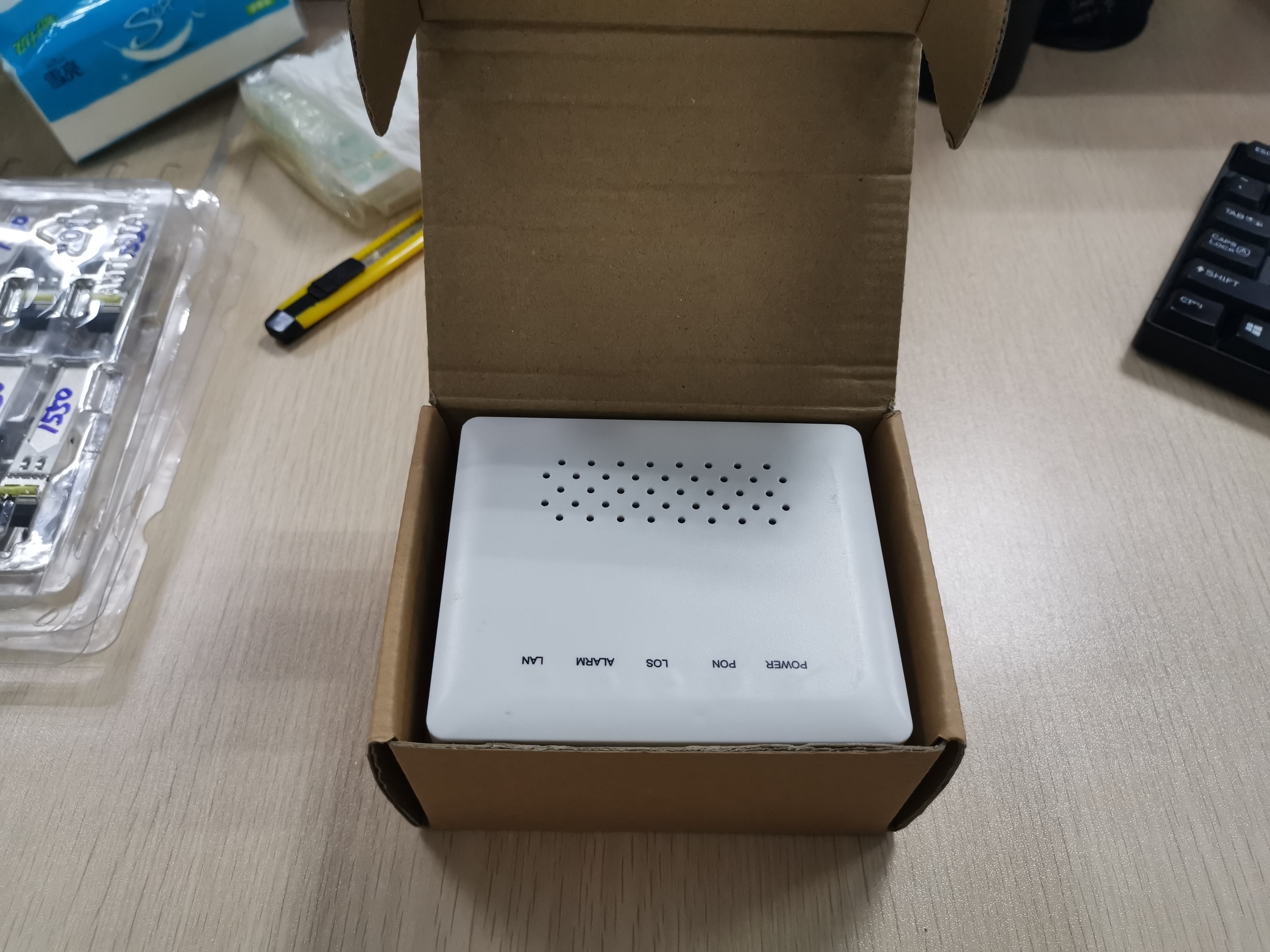

Package
Company Profile
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 11 years’ experience in global sales and services.
Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.
OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win more market and customers.
