Single Mode Gigabit Media Converter 2.5W Power Consumption With 1 Years Warranty

Product Categories

Shenzhen Optfocus Technology Co., Ltd.

Contact Now

Name: Single Mode Gigabit Media Converter 25W Power Consumption With 1 Years Warranty
Brand: OPTFOCUS
Price: 1 USD

Brand Name : OPTFOCUS

Model Number : OFS-DSS-20

Place of Origin : Shenzhen China

MOQ : 1

Payment Terms : T/T

Supply Ability : 5000 pieces per one week

Delivery Time : 5-7 working days

Packaging Details : 107mm x 82mm x 77mm

Product Model : OFS-DSS-20

Forwarding Mode : Store-and-Forward

Forwarding Rate : 148800pps/port

Power consumption : 2.5W

Working temperature : -10～55℃

Storage temperature : -20～75℃

Product Weight : 0.5 KG

Product size (L×W×H) : 69*50*24mm

Contact Now

100 Mbps mini Fiber to ethernet media converter with dual fiber single mode SC 20km

Product Description

Technical items		Description
Product Name		10/100M Media Converter
Product Model		OFS-DSS-20
Connector		Dual Fiber: 1* 100Mbps,SC/ST/FC Optional
		RJ45: 1*10/100Mbps,Auto MDI/MDI-X
Network Media		10BASE-T: Cat3,4,5 UTP(≤100 meter)
		100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media		Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
		Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding Mode		Store-and-Forward
Forwarding Rate:		148800pps/port
Operating standard		EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power (external)		Input:AC 100~250VOutput:DC 5V 1A ,(default).
		or Input:DC:-36V~-72V；Output:DC 5V 1A .(Optional)
Power consumption		2.5W
LED		Power, FX 100,Link/Act, TX 100,FDX, Link/Act.
Working Environment		Working temperature: -10～55℃ ;
		Storage temperature: -20～75℃
		Relative Humidity: 5%~95 %( no condensation)
Packing List		1× Media Converter
		1×User Manual/Certificate of quality/Warranty card

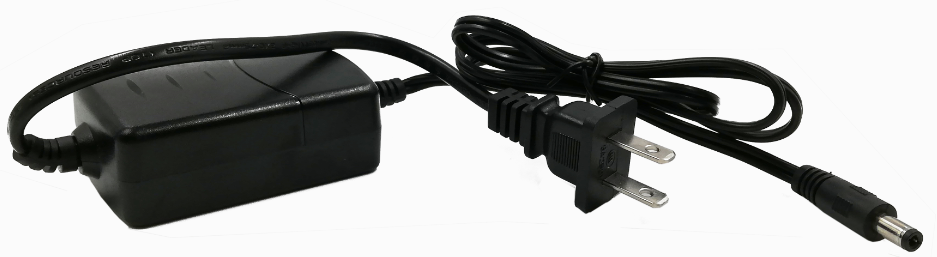

		1×power adapter
MTBF		100,000 hours
Weight & Size		Product Weight: 0.5 KG
		Packing weight: 1.1 KG
		Product size (L×W×H): 695024mm
		Packing size(L×W×H):107cm× 82 cm×77 cm
Warranty		1-years

1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps fiber
Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
UTP port supports MDI / MDI-X auto crossover.
Supporting 1552 bytes packet
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Data Transfer Rate:
　- TP: 10/100Mbps - FX: 100Mbps
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act
Design of external power supply for selection by end-users

OEM&ODM Support 10/100M Ethernet Fiber Media Converter

Single Mode Gigabit Media Converter 2.5W Power Consumption With 1 Years Warranty

Single Mode Gigabit Media Converter 2.5W Power Consumption With 1 Years Warranty
