1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function

Product Categories
Shenzhen Optfocus Technology Co., Ltd.
Contact Now

1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function

Brand Name : OPTFOCUS

Model Number : OFSE611-W

Place of Origin : Shenzhen China

MOQ : 3 pcs

Payment Terms : T/T

Supply Ability : 5000 piece per one week

Delivery Time : 5-7working days

Packaging Details : 85x85x25mm

Certification : CE , RoHS　

Price : 12-20 USD

Wavelength : Tx 1310nm, Rx 1490nm

Upstream PON interface : 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps, 1*WIFI

DC power supply : +12V, external AC-DC power adaptor

Chipset : zte chipset

Power switch : 1

Operating temp : -5~+55℃

Operating humidity : 10~90%(non-condensed)

Dimension : 83mm*83mm*25mm(length*width*height)

Net weight : 0.24Kg

Farthest distance : 20km between OLT and ONU

Optical interface : SC/UPC connector

Contact Now

1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function

Product Description

Most popular & high quality FTTH 1GE Ethernet ports with WiFi EPON ONU for office use

Technical Specifications

Technical items Description
Upstream PON interface 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps, 1*WIFI
Farthest distance 20km between OLT and ONU
Optical interface SC/UPC connector
Downstream LAN interface 1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors
Layer 2/3 switch Centralized OLT management based on OAM
WEB,CLI
Upgrade software remotely
Support to save configuration parameters when power down
WIFI Integrated 802.11b/g/n
Support WEP and WPA/WPA2 security protocols
Management maintenance Centralized OLT management based on OAM
WEB,CLI
Upgrade software remotely
Support to save configuration parameters when power down
Hardware information
Indicators 5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port.
DC power supply +12V, external AC-DC power adaptor
Chipset zte chipset
Operating condition Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed)
Storing condition Storing temp: -30~+60℃
Storing humidity:10~90%(non-condensed)

Feature:

  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

  • Completely compatible with EPON international standard IEEE802.3ah/802.3-2005

  • Support China Telecom EPON CTC3.1 standard and expand OAM

  • Support triple churning encryption request

  • Support DBA reporting mechanism request

  • Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah

  • Support the remote upgrade and download

  • Support status detection and fault report

  • Support to save configured parameters if power down

  • Support to configure the work mode at the user port

  • Support MDI-MDIX automatic-detection at the user port.

  • Support data encryption and decryption

  • Support access authentication based on serial number

  • Support access authentication based on MAC address

  • Support 802.1Q VLAN

  • Support rich QinQ VLAN functions and IGMP Snooping

  • Support traffic rule to modify the related priority.

  • Support IEEE802.11n 2T2R WiFi function

  • Support to restore the factory settings

  • Support the remote reset and reboot

  • Support dying gasp outage alarm

  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function

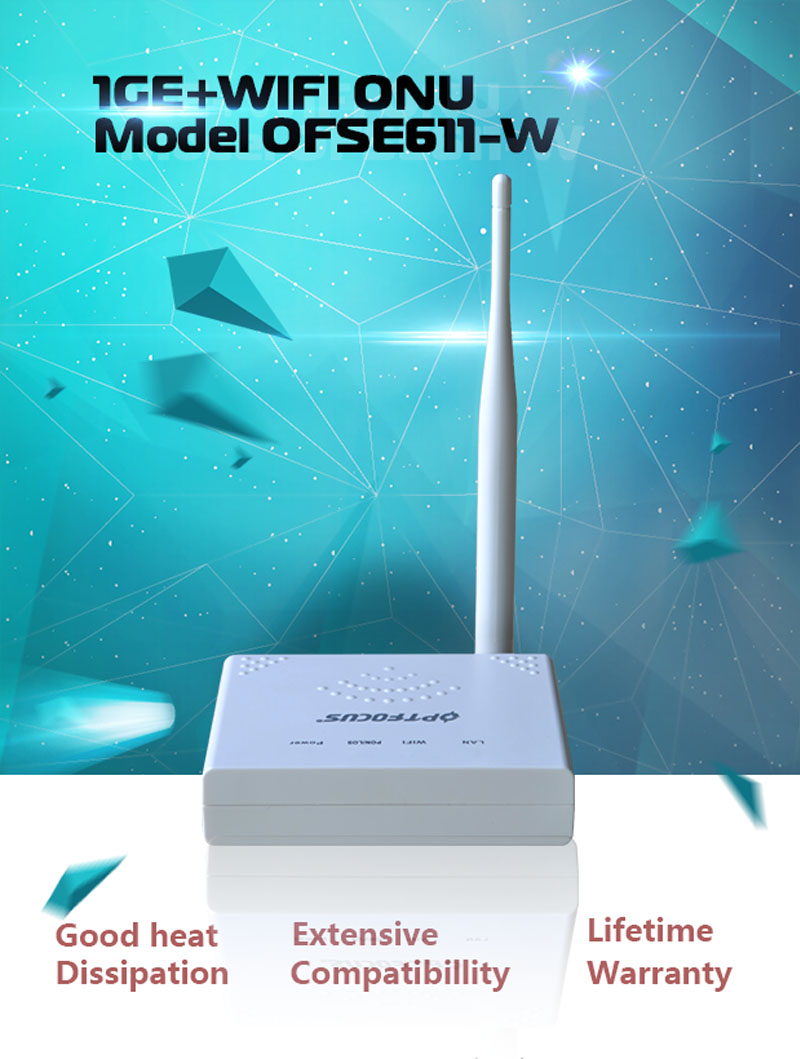

Physical Pic Reference :

1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function

Chassis Dimension:

1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function

Package Dimension:

Here is package box dimension of 1 port EPON ONU for your reference.

size for 1 port EPON ONU: 185x110x40mm

1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function

Power Supply Standard:

1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function

Application

1 EPON Port+1 RJ45 Port Mini EPON ONU with WIFI Function
